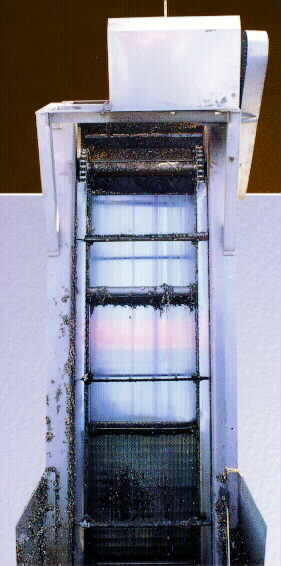

Fine Rake Screens



Fine Rake Screens are used for in-channel primary filtration. They are an advance on Automatic Bar Screens. A wedgewire screen is used as the filtration surface and the solids collected on the screen are hoisted by an elevating rake. The screen aperture is selected according to the material to be filtered.



FEATURES

  • Able to remove a wide range of particles (0.2-20 mm)

  • Simple, automatic equipment suitable for unmanned operations

  • No need for secondary screening

  • Major parts made from stainless steel

SUITABILITY
  • Removal of medium to large matter in sewage treatment plants (10-20 mm)
  • Primary filtration in sewage treatment plants (0.5-5 mm)
  • Primary filtration in tanneries, dye houses, pulp and paper plants (0.5-2mm)
  • Primary filtration in abattoirs and meat processing plants (1-2 mm)
FLOW RATES (M3/Hr)
Slot Width
- mm
SCREEN DIMENSIONS Width x Length - mm
330x1700
430x2100
530x2800
630x2800
730x2800
830x2800
1.0
33
75
115
130
190
220
1.5
45
110
155
178
260
305
2.0
55
135
195
225
310
400
3.0
70
175
230
265
390
520
5.0
85
200
300
345
495
600

Please note that the above flow rates are dependent upon the nature of the feed, particle size and solids content.
