Outer Basket - Scallop - Centre Pipe




PRINCIPLE

The efficiency of many processes such as ammonia reactors and catalytic crackers (IFP,UOP) can be improved if a radial flow configuration is used instead of a conventional support grid. The efficiency of the construction is highly dependent upon the design.


FEATURES OF THE DESIGN
  • Near perfect distribution
  • Non clogging surface
  • Minimal pressure drop
  • Smooth surface to reduce turbulence
  • Unobstructed catalyst movement
  • No attrition
  • High mechanical strength
  • Flexibility in construction allowing single or multiple elements to be bolted or welded in situ

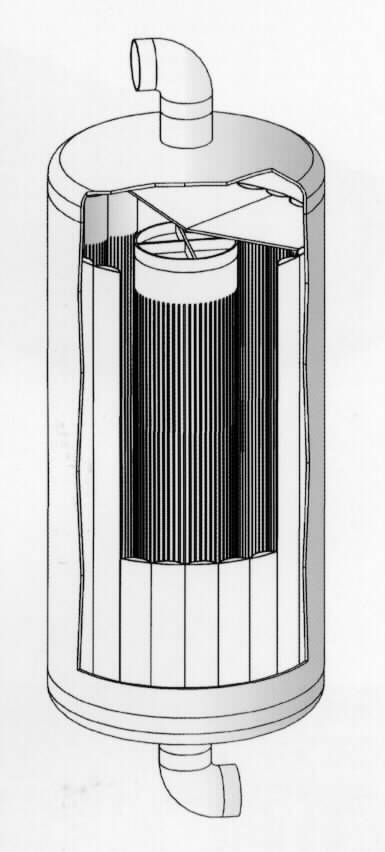

Outer Basket - Scallop - Centre Pipe Arrangement

CENTRE PIPE

The screen is re-rolled onto a perforated pipe to enhance mechanical strength and provide ideal flow distribution

OUTER BASKET

The outer basket can function as both a flow distributor and a filter

SCALLOP

The outer basket can be arranged as a series of half cylinders set against the vessel wall and held in place by rings together with the weight of catalyst
